2D Desktop Scanner
TDS-5508

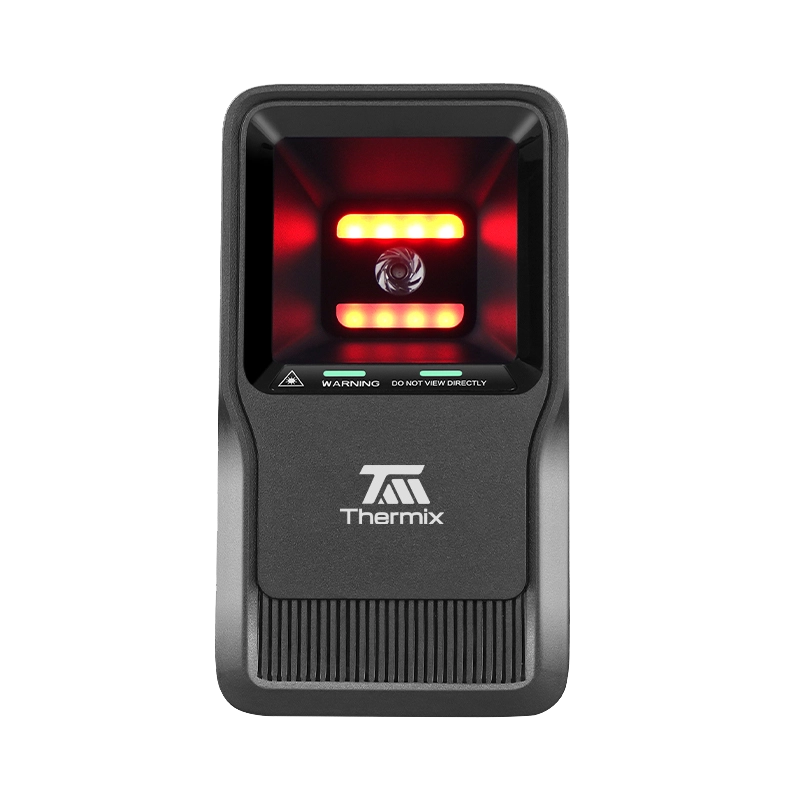

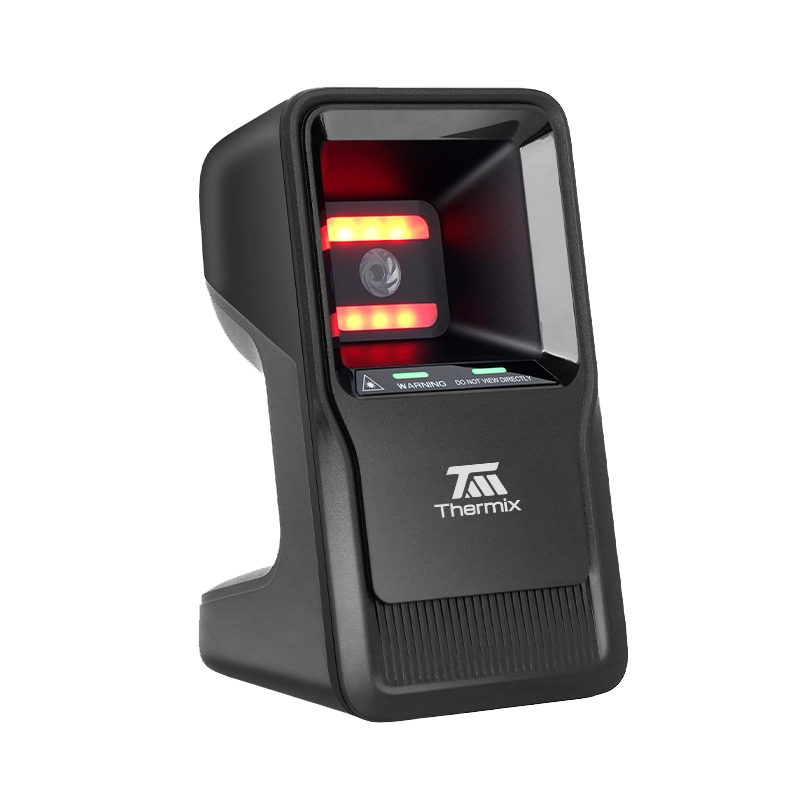

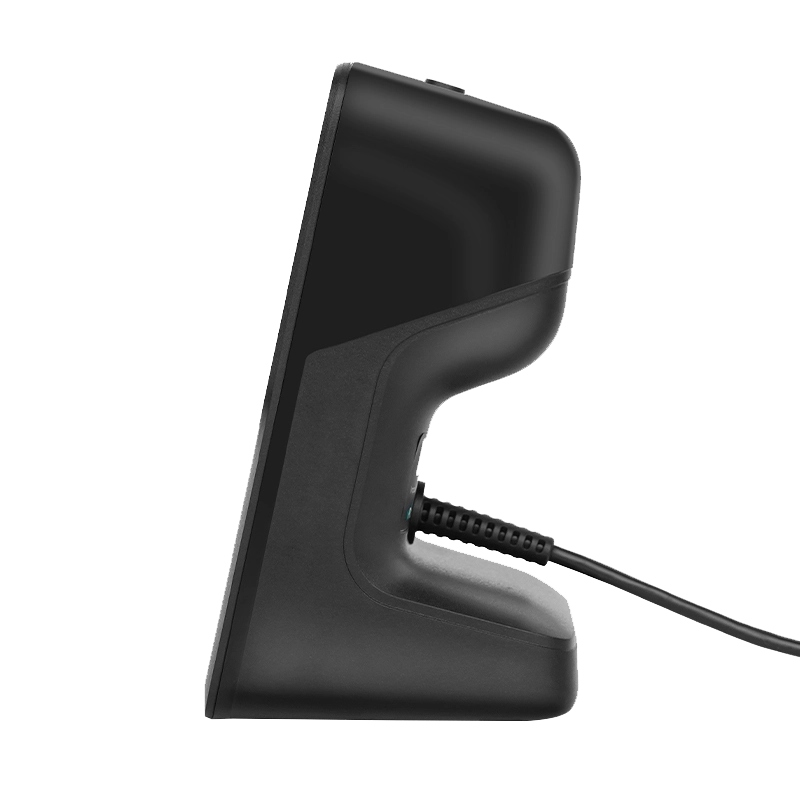

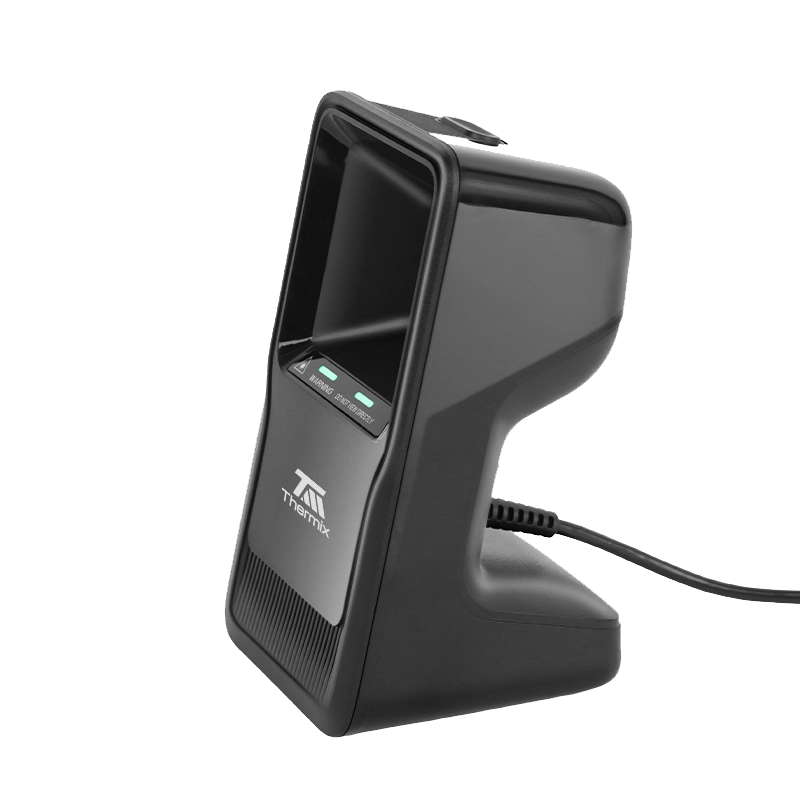

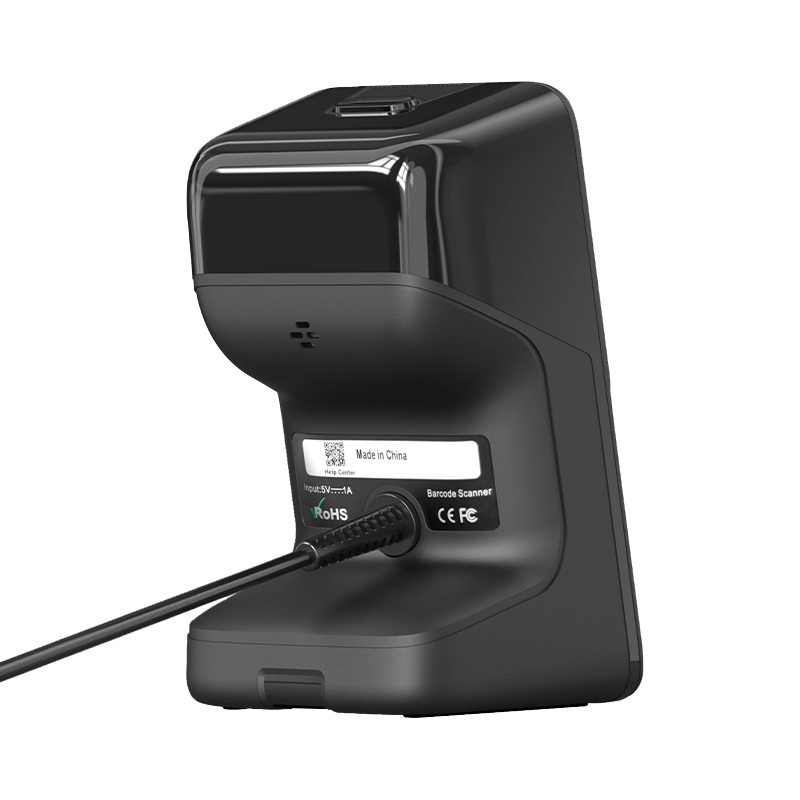

Thermix TDS-5508
Hands-free 2D desktop scanner with auto-sensing up to 120 FPS
Key Features
- Ergonomic design for hands-free or handheld use
- Supports 1D & 2D barcodes on mobile phones and tablets
- Plug and play — simple setup, fast use
- Scan speed up to 120 FPS, motion tolerance up to 2 m/s
- Secondary development and remote optimization support
The Thermix TDS-5508 is an ergonomic 2D desktop scanner for hands-free or handheld operation. It reads 1D and 2D barcodes from paper, phones, and tablets with plug-and-play USB setup.
Automatic induction scanning, up to 120 FPS capture, and motion tolerance up to 2 m/s keep checkout lanes moving. Secondary development and remote optimization support are available for integrators.
Specifications
Technical data from the official Thermix TDS-5508 datasheet.
| Sensor Pixels | 640 × 480 |
|---|---|
| Decode 1D | EAN, UPC, Code 128/93/39/11, Codabar, ITF, GS1 Databar, MSI-Plessey, and more |
| Decode 2D | QR Code, Data Matrix, PDF417, Micro PDF417, Micro QR, Aztec |
| Scan Range | 10–130 mm (EAN-13 13 mil, PCS 90%) |
| Scan Mode | Automatic induction scanning |
| Interface | USB (drive-free), USB-COM |
| Dimensions | 80 × 81 × 142 mm |
| Weight | 255 g |
| Material | ABS + PC |
| Voltage | DC 5V ± 5% |
| Current | Standby 185 mA; Working 220 mA |
| Shock Resistance | Multiple 1.5 m drops to concrete |
| Operating Temp | -20°C – 60°C |
