2D Desktop Scanner
TDS-5517
Thermix TDS-5517
Adjustable-angle 2D desktop scanner with light & buzzer dual prompts
Key Features
- Supports 1D & 2D barcode scanning
- Adjustable scan window angle
- Plug and play — simple setup, fast use
- Light and buzzer dual prompts
- Shockproof and fall resistant with a long lifespan

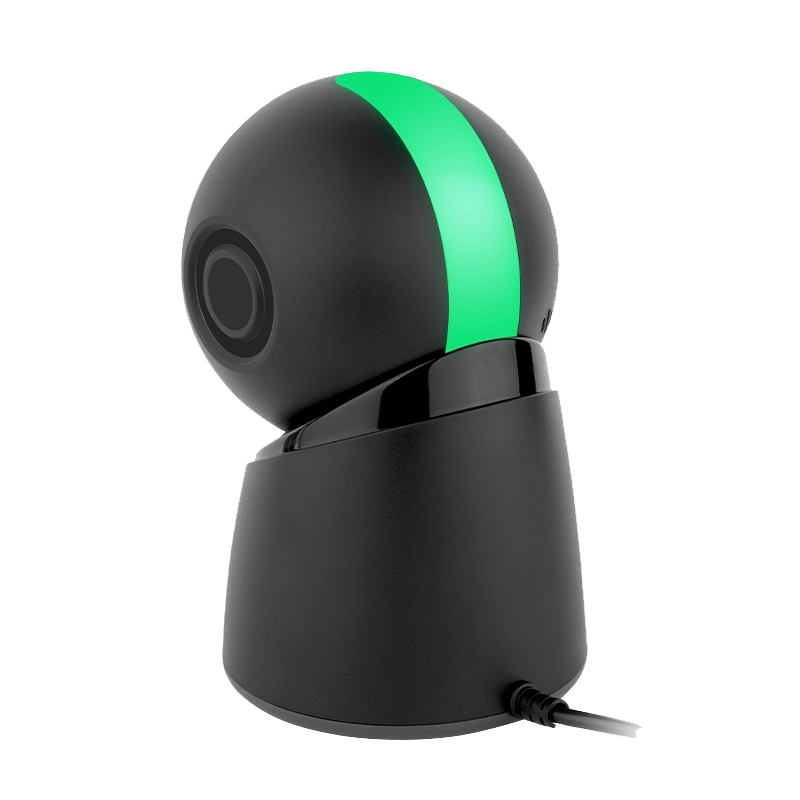

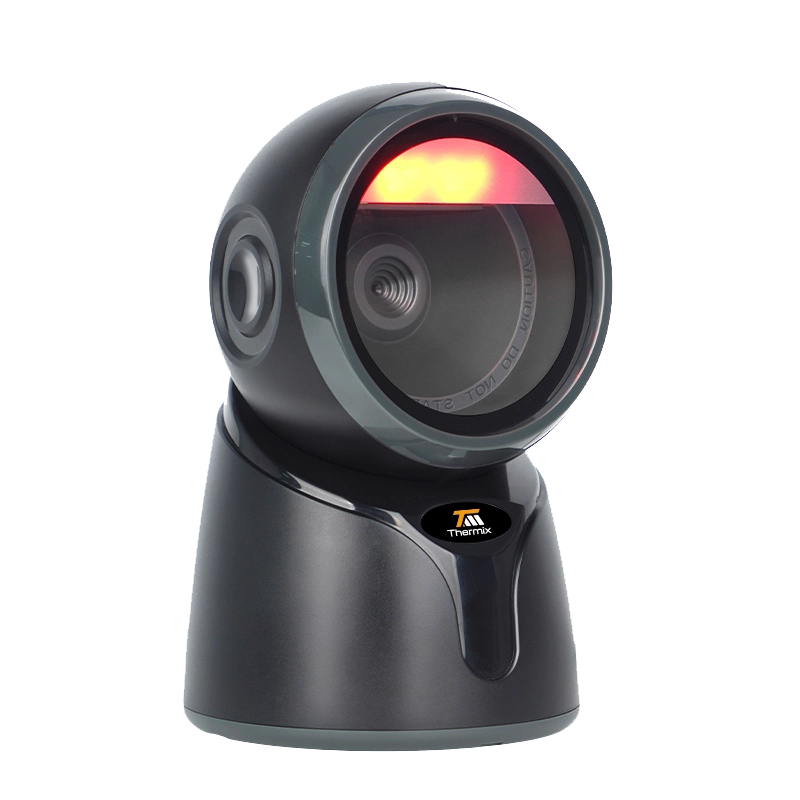

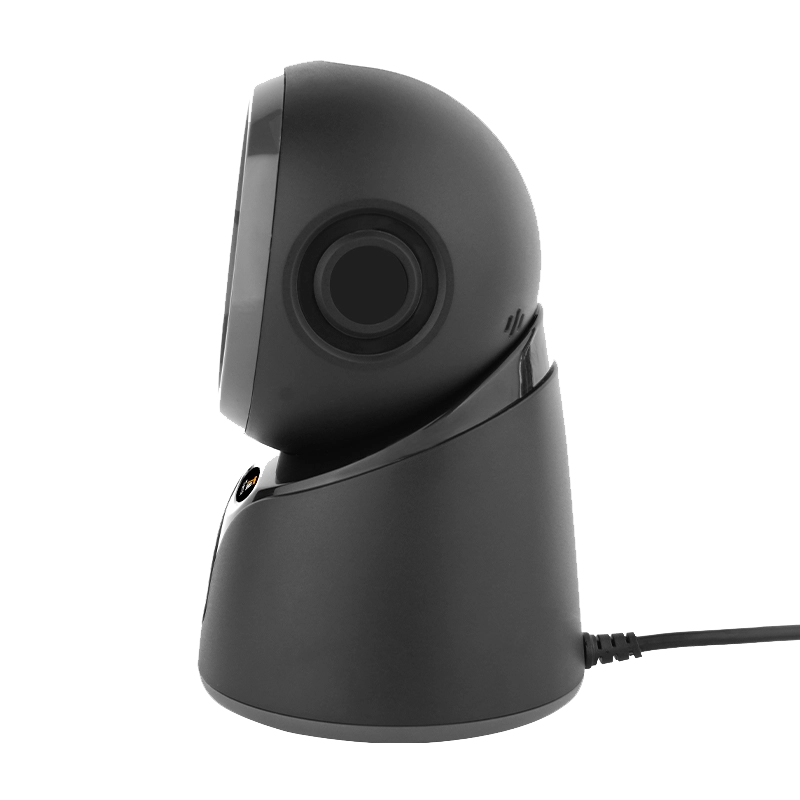

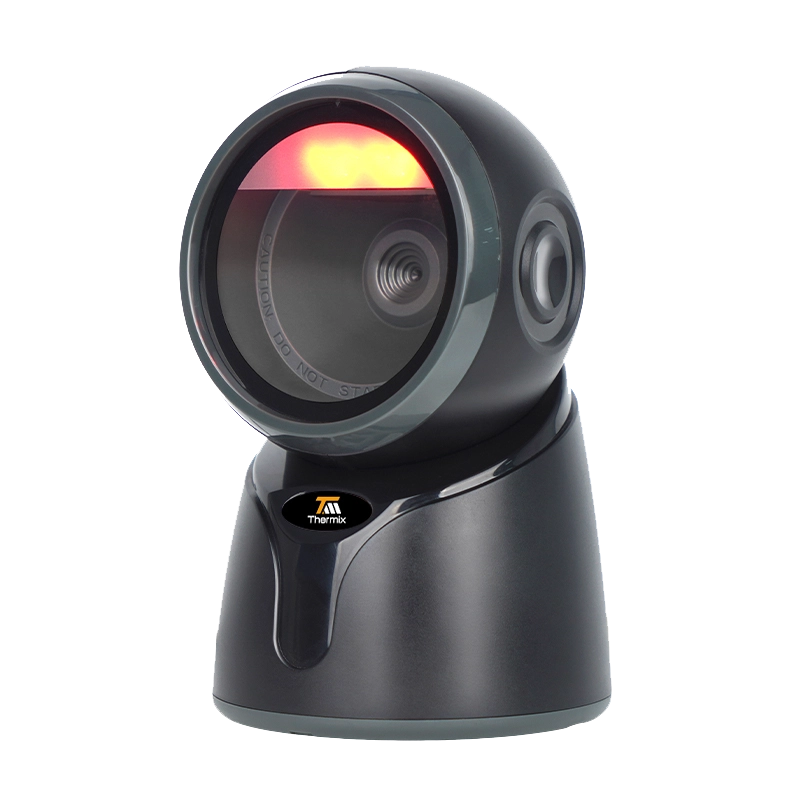

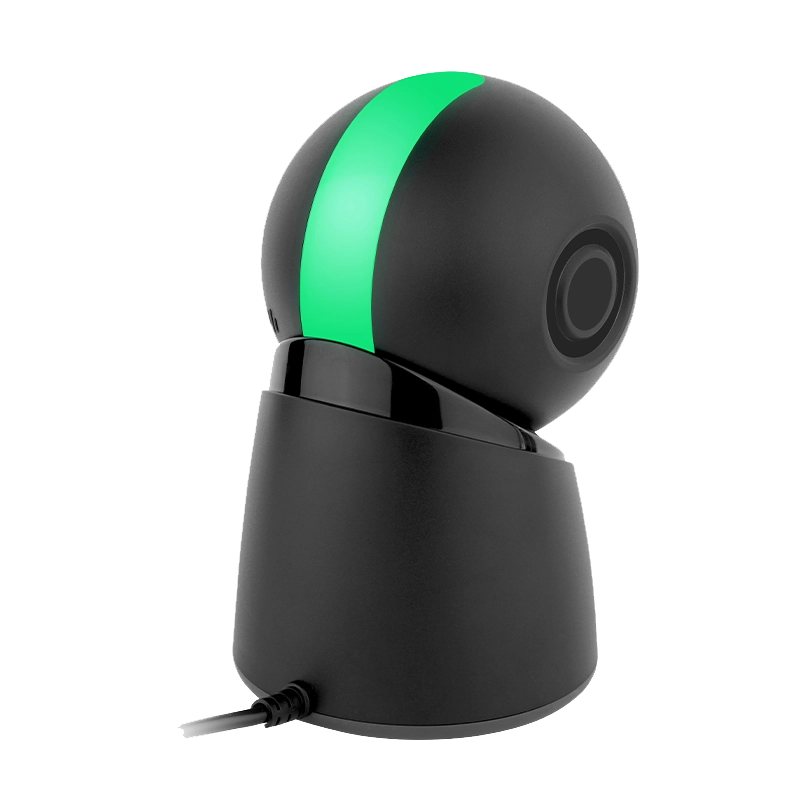

The Thermix TDS-5517 is a spherical 2D desktop scanner with an adjustable scan-window angle for different counter layouts. Automatic induction scanning, green LED confirmation, and a buzzer keep operators informed without looking away from the customer.
Shock-proof ABS+PC construction, a 2 m cable, and USB drive-free / RS232 / USB-COM interfaces make it a durable plug-and-play choice for retail and restaurant lanes.
Specifications
Technical data from the official Thermix TDS-5517 datasheet.
| Sensor Pixels | 640 × 480 |
|---|---|
| Scanning Principle | CMOS image capture |
| Scan Mode | Automatic induction scanning |
| Scan Range | 10–140 mm (EAN-13 13 mil, PCS 90%) |
| Accuracy | ≥ 4 mil |
| Recognition Angle | Elevation ±60°, Rotation ±360°, Declination ±60° |
| Decode 1D | EAN, UPC, Code 128/93/39/11, Codabar, ITF, GS1 Databar, MSI-Plessey, and more |
| Decode 2D | QR Code, Data Matrix, PDF417, Micro PDF417, Micro QR, Aztec |
| Interface | USB drive-free, RS232, USB-COM |
| Reading Prompt | Green indicator flash |
| Dimensions | 100 × 100 × 160 mm |
| Weight | 270 g |
| Material | ABS + PC |
| Cable | 2 m straight |
| Voltage | DC 5V ± 5% |
| Current | Standby 180 mA; Working 230 mA |
| Shock Resistance | Multiple 1.5 m drops to concrete |
| Operating Temp | -20°C – 60°C |
