2D Desktop Scanner
TDS-5526

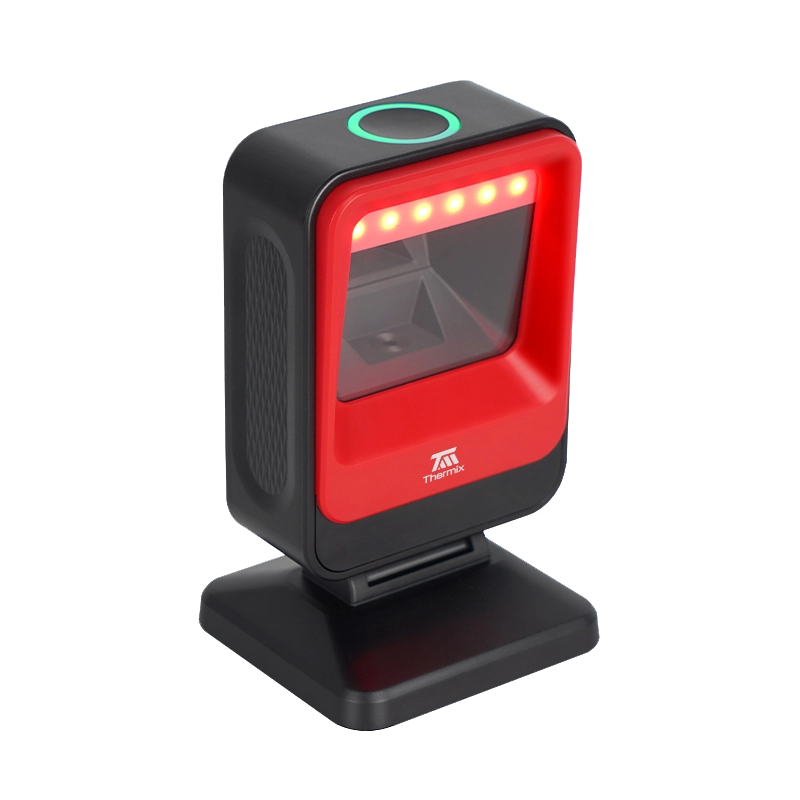

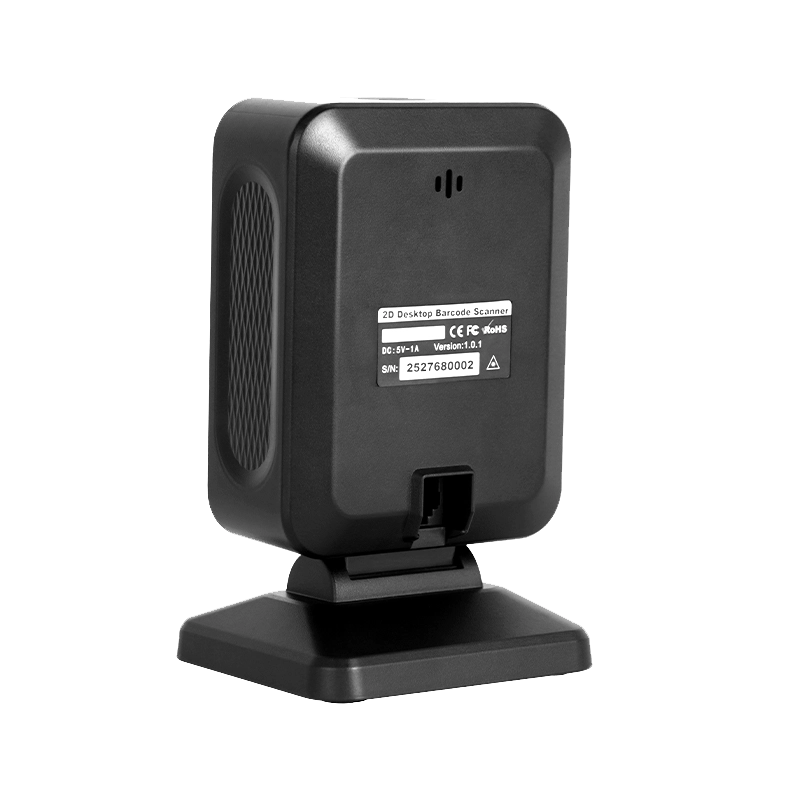

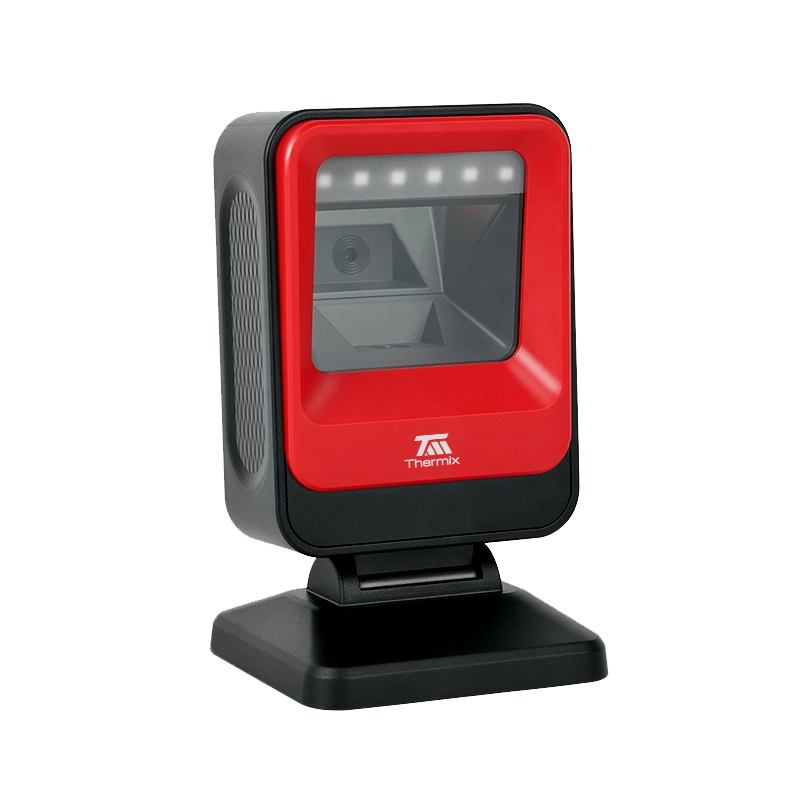

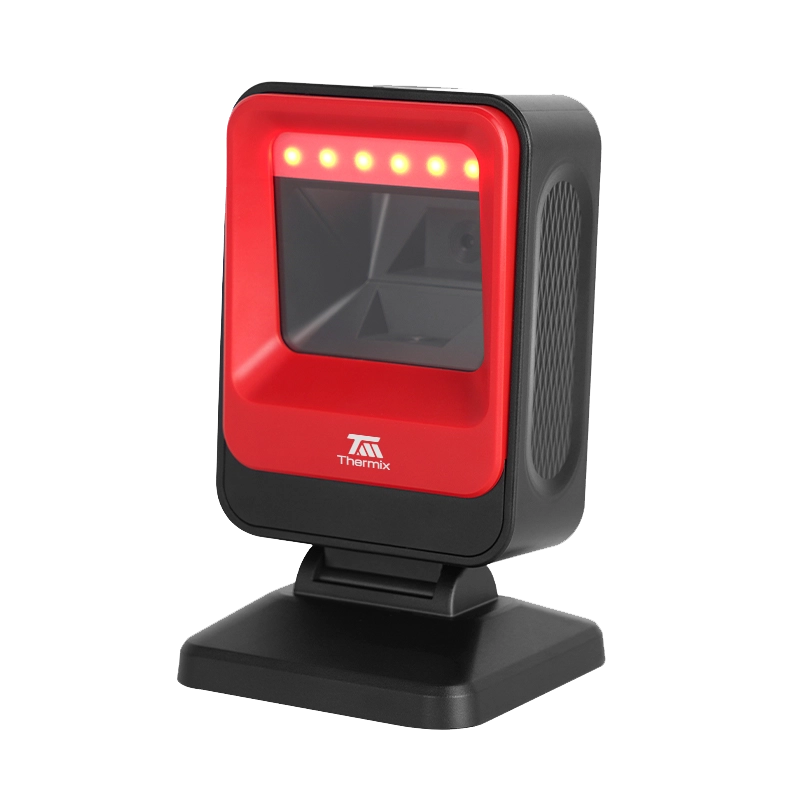

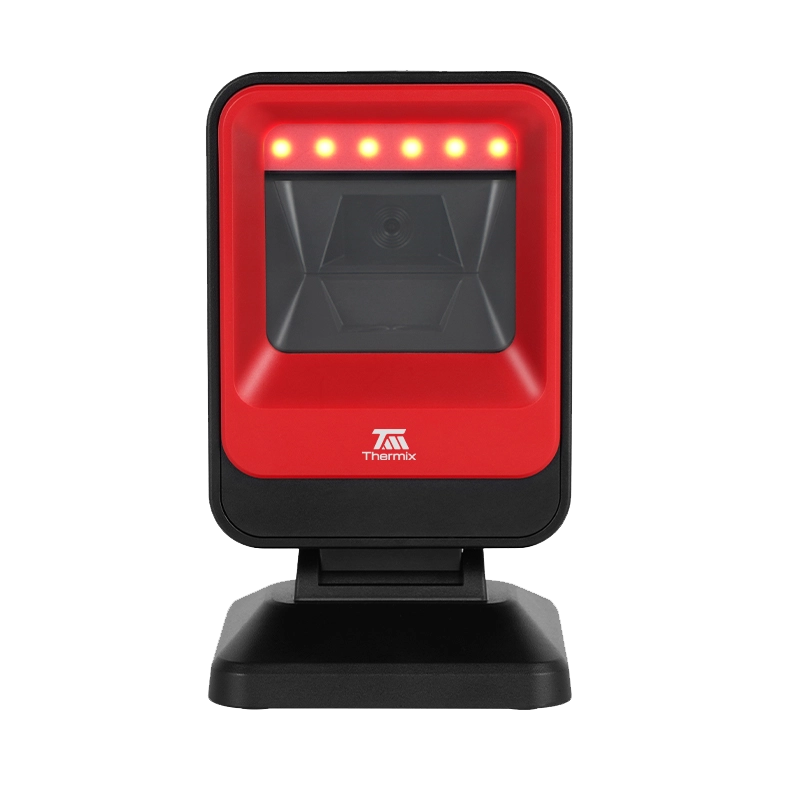

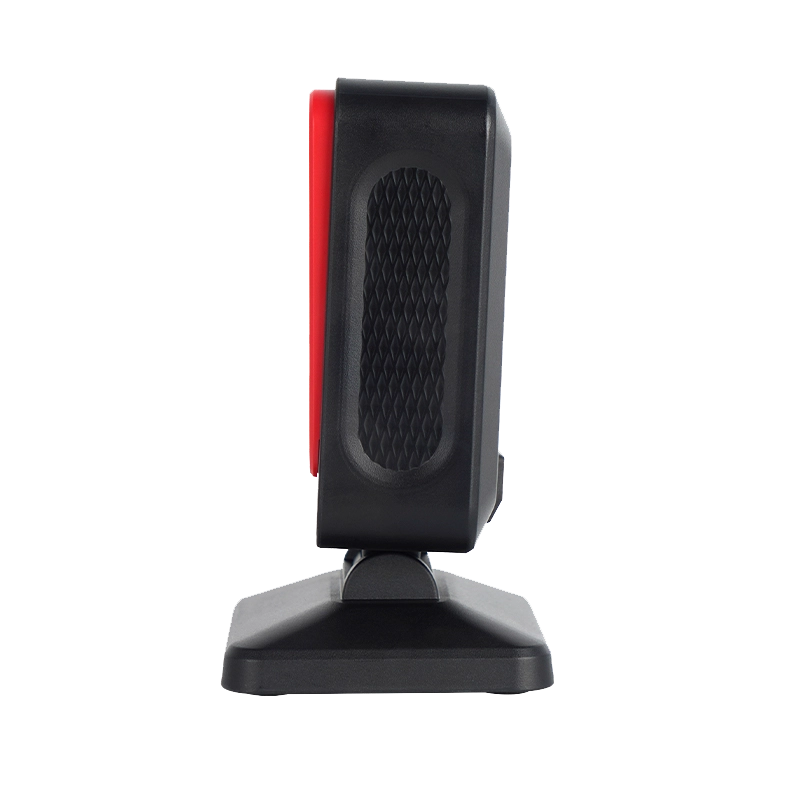

Thermix TDS-5526
Adjustable-head 2D desktop scanner with 4 m/s motion tolerance
Key Features
- Adjustable scanning head for various scenarios
- Automatic sensing and automatic scanning
- Scan-code light and buzzer prompts
- Plug and play — no driver design required
- High-strength material, shock-proof and fall-proof
The Thermix TDS-5526 features an adjustable scanning head for varied counter and kiosk scenarios, with automatic sensing, scan-light and buzzer prompts, and true plug-and-play USB setup.
High-strength shock-proof materials, 4 m/s motion tolerance, and USB / USB-COM / RS232 interfaces keep high-throughput retail and restaurant lanes scanning reliably.
Specifications
Technical data from the official Thermix TDS-5526 datasheet.
| Sensor Pixels | 640 × 480 |
|---|---|
| Decode 1D | Codabar, Code 39/32/93/128/11, UPC, EAN, GS1 DataBar, China/Korea Post, and more |
| Decode 2D | PDF417, Micro PDF417, QR Code, Data Matrix, MaxiCode, Aztec, HANXIN |
| Scan Range | 0–160 mm (EAN-13 13 mil, 90% PCS) |
| Motion Tolerance | 4 m/s |
| Scan Mode | Automatic induction scanning |
| Field of View | 44° (H), 34° (V) |
| Print Contrast | 20% |
| Scan Angle | Turn ±360°, Elevation ±65°, Declination ±65° |
| Interface | USB (drive-free), USB-COM, RS232 |
| Dimensions | 80 × 75 × 135.5 mm |
| Material | ABS + PC |
| Cable | 1.5 m |
| Voltage | DC 5V ± 5% |
| Current | Standby 190 mA; Working 240 mA |
| Shock Resistance | Multiple 1.5 m drops to concrete |
| Operating Temp | -20°C – 60°C |
